Toyota Land Cruiser | Lexus LX570 | Skid Plate Package
Toyota Land Cruiser | Lexus LX570 | Skid Plate Package
Regular price
$714.97 USD
Regular price
$864.97 USD
Sale price
$714.97 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
This item is being made to order. Please allow 1-2 weeks for order processing.

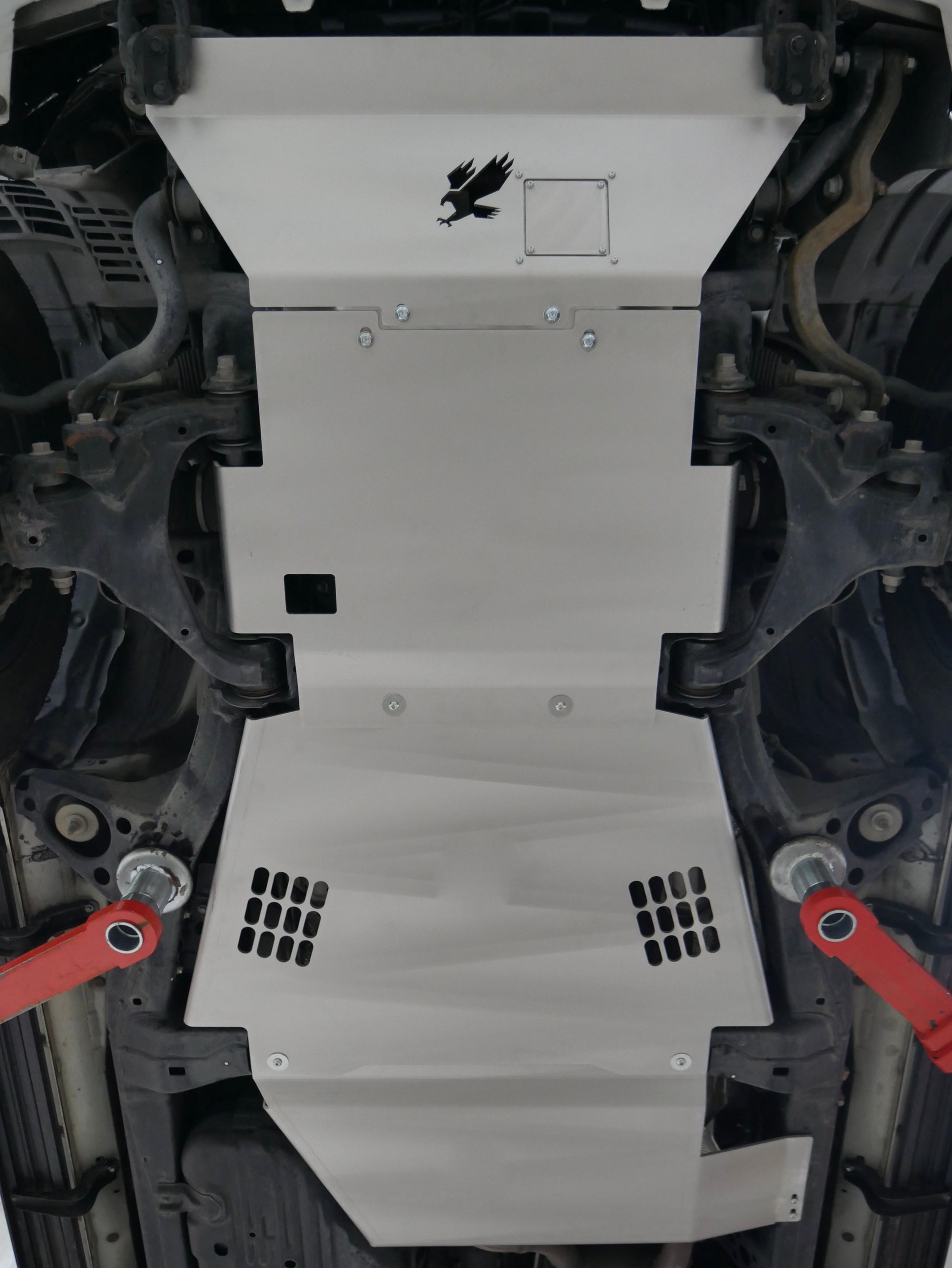

Savings when you bundle! Get full undercarriage protection with a set of Talons Garage skid plates for the 2008-2021 Toyota Land Cruiser and Lexus LX570.
Fitment
- Front/engine skid plate
- Mounts into preexisting holes from the factory
- If your truck has a diff drop leave us a note when you place your order so that we can include the appropriate spacers.

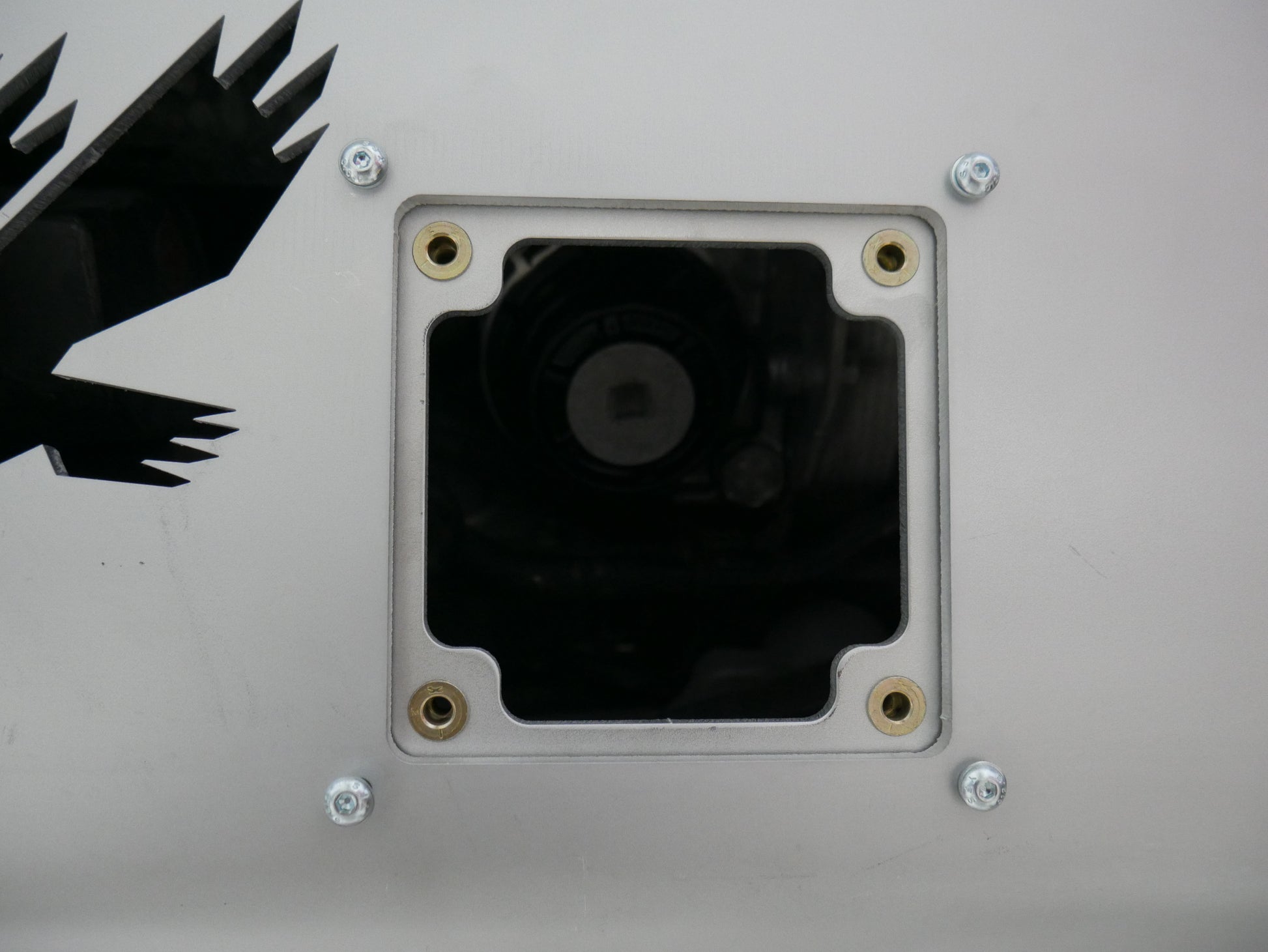

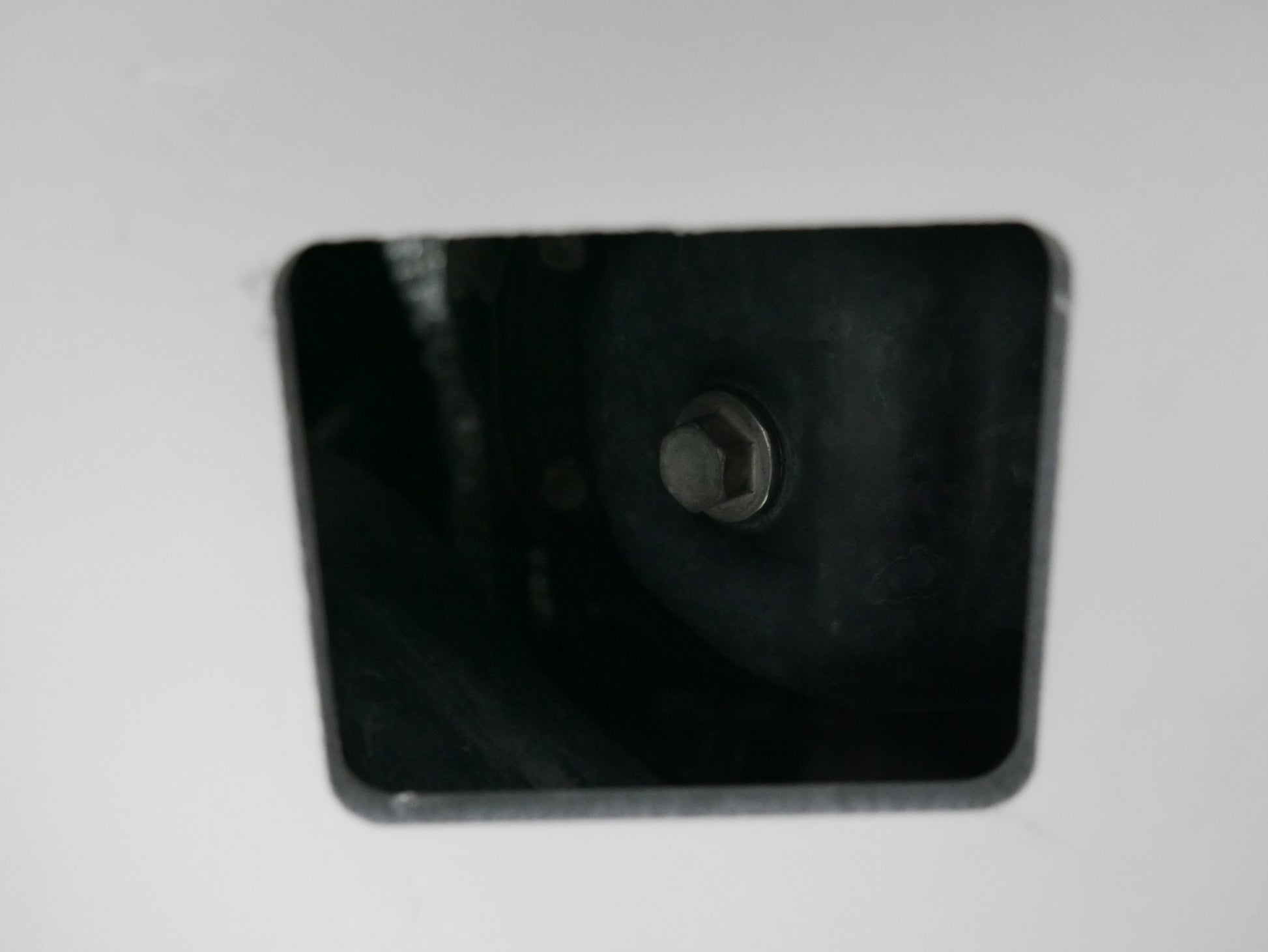

- Access to oil drain plug and filter without removing skid plates
- Transmission skid/front cat shield
- Transmission skid plate doubles as a catalytic converter shield
- Ventilation holes to keep temperatures down around the transmission
- Transfer case skid/rear cat shield
- Protect your vehicles transfer case as well as the rear catalytic converters
- Some rock sliders may interfere with fitment
- All products are designed to fit stock 4x4 vehicles
- Will not fit with lift kits that require subframe modifications (usually lifts greater than 3 inches)
- In some instances, there may be a tab on a preexisting OEM/TRD skid plate that will need to be bent slightly to allow the transmission shield to slide into place. This does not impact the integrity of either shield
Included with purchase
- Engine skid, transmission skid, and transfer case skid
- Zinc-coated button head Allen head hardware
Material
- Aluminum: CNC Laser Cut out of 1/4" 5052 Aluminum - Will not rust!
- All plates ship uncoated as bare metal, some cosmetic blemishes may be present on material upon arrival. Displays in pictures have been polished and finished
- Steel: 10-gauge black powder coat
Installation
- Mounts into preexisting holes from factory
- Bolt in installation, no drilling required, can be performed by anyone with basic hand tools
- Click here for installation instructions
Dimensions
- Engine: Aluminum weight 33 lbs, steel weight 51 lbs
- Transmission: Aluminum weight 30 lbs, steel weight 44 lbs
- Transfer Case: Aluminum weight 20 lbs, steel weight 30 lbs
Shipping, returns, warranty
- Click here for our policies page
- If you are interested in local pick up please select "Local Pick Up" as your shipping preference at check out. We are located in Northwest Houston (Willowbrook, zip code 77066).
